Products and solutions
A single window for the green sand foundry process
From sand control and mixing to moulding, sand handling and reclamation, plus SPB waste-recovery technology and project services.
Portfolio at a glance
What Rhino offers
| Product or solution | What it does | Headline figures |
|---|---|---|

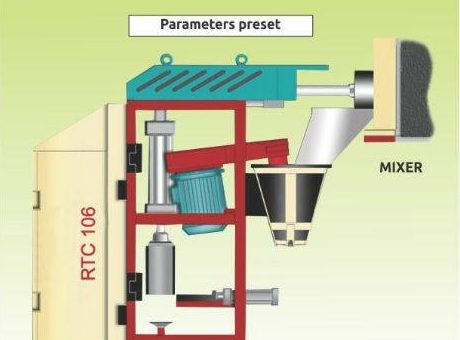

 RTC online sand controller | Measures sand compactability and controls water addition; the RTC 106 also measures green compression strength and manages additives | Fits any mixer; logs every batch; optional cloud monitoring; 148 installed |

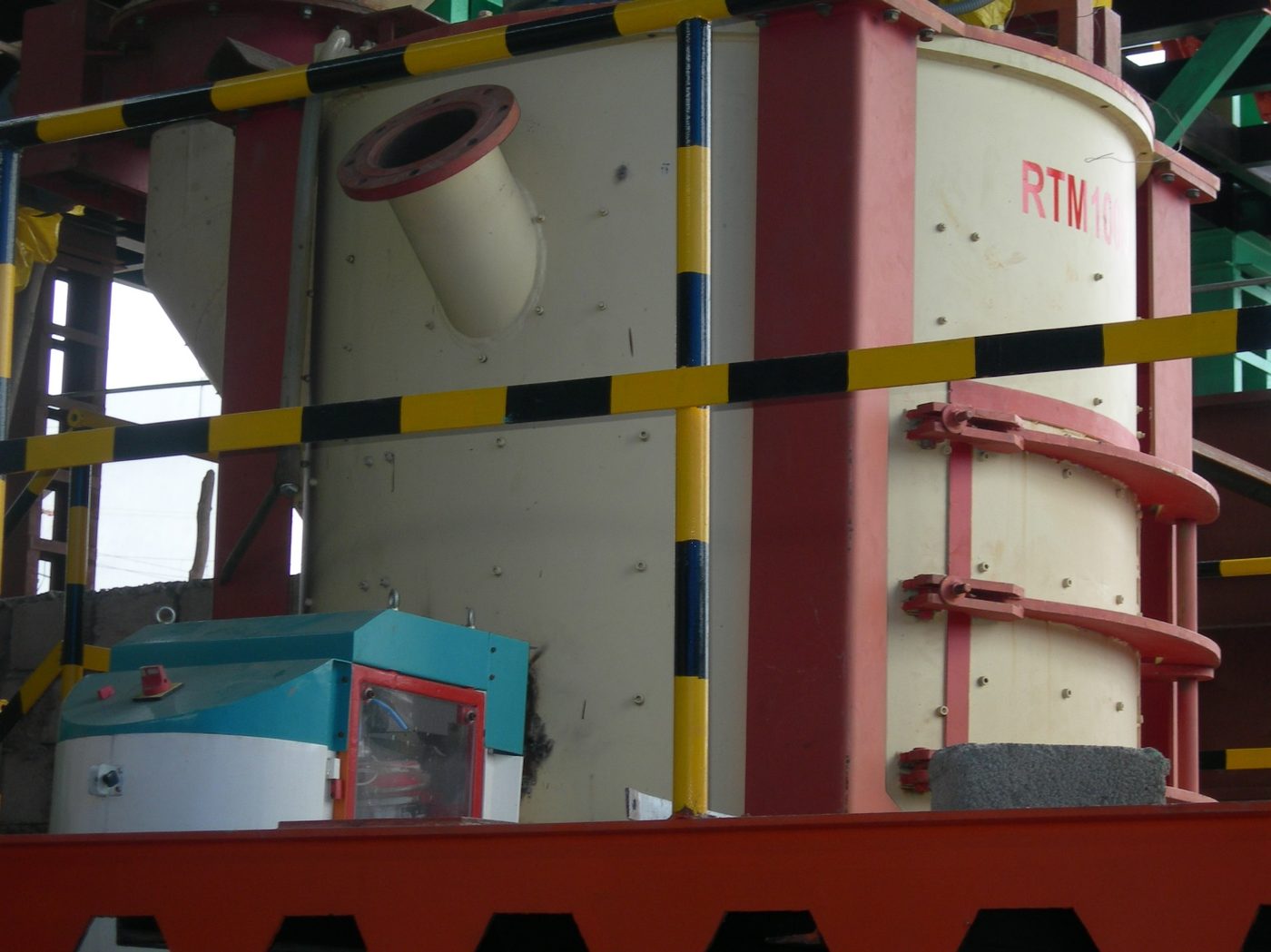

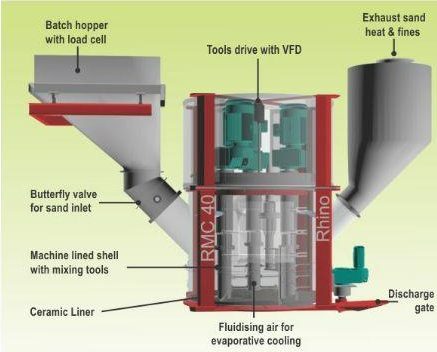

 RotoMax mixer and RMC mixer cooler | A planetary mixer and a mixer cooler that prepare aerated sand for moulding | RTM mixer 14 to 180 t/hr; RMC mixer cooler 10 to 150 t/hr; about 1.8 kWh per tonne of sand; 90+ installed |

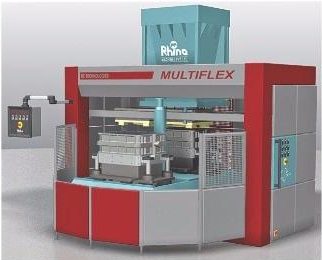

 MultiflexFM high pressure moulding | Fully hydraulic, floor-mounted moulding for dense, accurate moulds | Squeeze pressure 6 to 12 kg/cm²; 10 to 150 moulds/hr; below 85 dB; 95 installed |

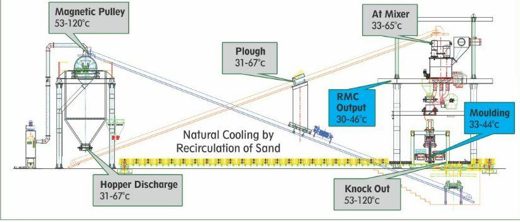

 EcoFlex sand plant | Compact, modular sand mixing, cooling, handling and dust collection | 3 to 80 t/hr; 30 to 50% less operating energy; 54 installed |

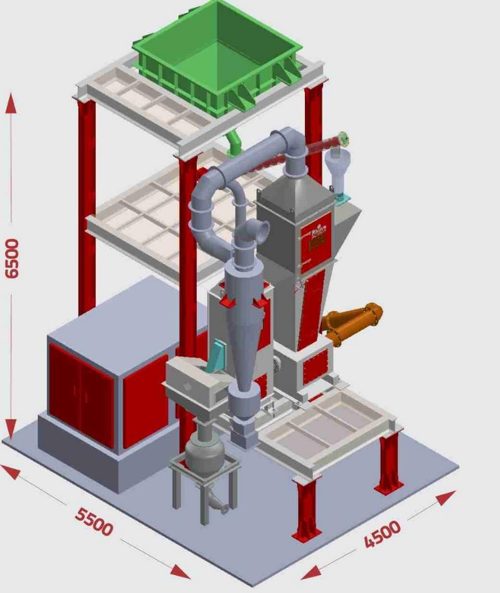

 Sand reclamation (S1 to S4) | Recovers silica sand from green and chemically bonded sand | S1 recovers 75 to 85% of the sand and S4 replaces up to 90% of new sand; 11 plants built |

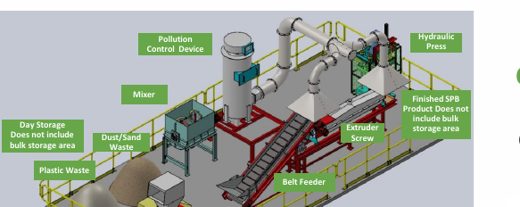

 Silica Plastic Block (SPB) | Turns foundry dust and used sand, with waste plastic, into blocks, pavers and products | 100% waste input; strength M10 to M30; zero water absorption; 15 plants supplied since 2021 |
| Services | Project engineering, consultancy, after-sales, spares, training and digital support | 24x7 support; Swiss-model training; IoT-enabled data |
Green sand
A single-window solution
Rhino supplies the whole green sand loop for a foundry: sand preparation, control, distribution, moulding and mould handling, with sand reclamation to close the loop.
Heritage range
Equipment Rhino has built and still supports
Before the current range, Rhino built, and still services, a wide set of foundry equipment.
| Area | Equipment |
|---|---|
| Sand preparation | Knockout machines 500 kg to 5 tonnes; rotary green sand coolers to 28 tonnes an hour; intensive batch mixers 50 to 650 kg; S-blade core sand mixers 40 to 400 kg; rotary sand dryers 600 kg to 5 tonnes an hour; automatic green sand plants from 4 to 100 tonnes an hour; sand washing, drying and cooling plants; conveyors, elevators and screens |
| Moulding | Automatic and semi-automatic plants for jolt squeeze, high pressure, no-bake and shell moulding; piston ring moulding machines (now part of the MultiflexFM HSQ series, still sold) |
| Pouring and charging | Powered monorail and bi-rail pouring; geared and treatment ladles; ladle pre-heaters; furnace charging systems with load cells |
| Silicate and CO₂ sand | Silicate sand mixers, compaction tables with hydraulic stripping, CO₂ reclamation machines |
| Centrifugal casting | Horizontal machines for 35 to 800 mm shafts up to 2,500 mm long; vertical machines up to 1,600 mm diameter. Serviced, not sold at present |
| Other | Autoclaves for investment casting dewaxing; swing frame grinders |
| With European partners | Fondarc, France: RTM mixers 5 to 120 tonnes an hour, MXC mixer coolers 20 to 100 tonnes an hour, RTC 103 and 106, air impulse moulding machines for boxes 400 x 500 to 600 x 800 mm. Sogemi Engineering, Italy: continuous mixers, compaction tables, simplex thermal reclamation, chromite separation, dense phase conveying. Technogenia, France: hard-facing for sand mixers. Peterle, Italy: core machines. |
Need a datasheet or a layout?
Tell us your product mix and monthly tonnage and our team will suggest the right-sized solution.
